Your mold quote comes back higher than you planned. One line item says “2 side actions.” You never asked for those, so where did they come from?
The reason is undercuts in injection molding. An undercut is a part feature that gets caught when the mold halves pull apart. To release it, the molder adds moving parts to the mold. Those parts add cost, and that’s likely why your quote went up.
Some undercuts are worth the cost. Others go away with a small design change. This guide explains what undercuts are and why they raise mold cost. It also shows how to keep the feature or design it out.
First, we’ll show you common undercut features and what they cost you. Next, we’ll explain the mold parts that form them, like side actions and lifters. Then we’ll cover design fixes for holes, windows, and clips. We’ll finish with the rare undercuts that are hard or impossible to mold.
An undercut in injection molding is a feature that keeps a part from pulling straight out of a mold. Common examples are side holes, snap-fit hooks, threads, barbs, and windows in a side wall. External undercuts sit on the outside of the part. Internal undercuts sit inside it.
Undercuts can still be molded, but the mold needs extra moving parts to release them:
Each one adds cost and complexity to your tool. Many undercuts can be designed out instead. You can line the feature up with the mold pull, add a pass-through shutoff, or drill after molding.
You can spot most undercuts with one simple test. Imagine the two halves of the mold pulling straight apart. Does any feature on your part get caught on the steel? If so, that feature is an undercut.
Most molds have two halves. The cavity forms the outside of the part, and the core forms the inside. Undercuts can show up on either side.
An external undercut sits on the outside of the part. A hole through the side wall of a box is a good example. An internal undercut sits on the inside. Threads inside a bottle cap are a common one.
Common undercut features include:
Undercuts are one of the main part design limits in injection molding. Now that you can spot an undercut, here’s what it costs to keep one.
Every undercut needs a part of the mold that moves on its own. That moving part has to be designed, cut from steel, and fitted into the mold. All of that shows up on your quote.
The main cost drivers are:
How much more? That depends on the part, the number of actions, and the size of the tool. Each action you add raises the price again. To see what else shapes your price, read our guide on what drives mold cost.
Moving parts also wear over time. Worn slides and lifters need repair or replacement over the course of a mold’s life.
Slide shutoff areas are a common spot for flash. Flash is a thin fin of extra plastic that leaks out between steel faces. As slides and lifters wear, small gaps can grow and make flash more likely.
That doesn’t mean you should avoid every undercut. It means you should decide on purpose. If the feature stays, here are the mold parts that make it possible.

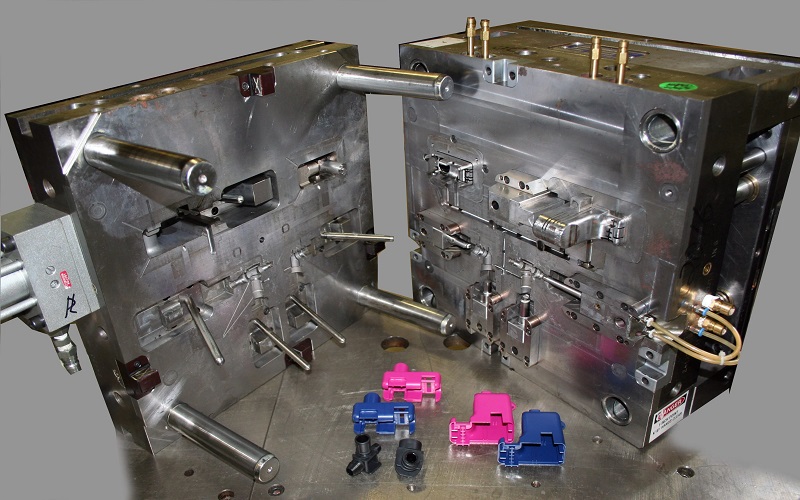

If your quote lists side actions or lifters, these are the mold parts it means. Each one solves the same problem in a different way. The right choice depends on where the undercut sits and how many parts you need.
Side actions (slides) handle features on the outside of the part. They move in from the side, at a right angle to the way the mold opens. Angled pins guide them in as the mold closes and pull them back as it opens.
Lifters handle features on the inside of the part. As the part is pushed out, the lifter moves forward and sideways at the same time. That sideways motion pulls it free of the inner feature.
Hand-loaded inserts are loose metal pieces. An operator places one in the mold before each shot. It comes out with the part and is then removed. Inserts cost less to build but add time to each cycle, so they fit short runs.
Collapsible and unscrewing cores form threads on the inside of a part. A collapsible core shrinks inward to release the threads. An unscrewing core turns to back out of them.
Bump-offs work for small undercuts in flexible plastics like TPE, polyethylene, and polypropylene. The part flexes just enough to pop off the steel as it ejects. The undercut needs a rounded or ramped edge, not a sharp hook. No side action is needed.
| Method | Best for | Cost impact | Run size fit |
| Side actions (slides) | Outside features like side holes and windows | Moderate to high | Low to high volume |
| Lifters | Inside features like inner clips | Moderate to high | Low to high volume |
| Hand-loaded inserts | Simple features on test or early parts | Low tool cost, slower cycles | Short runs |
| Collapsible or unscrewing cores | Threads on the inside of a part | High | High volume |
| Bump-offs | Small, rounded undercuts in flexible plastics | Low | Low to high volume |
Before you pay for a side action, check whether a small design change can remove the undercut. These fixes are far easier to make in CAD than in steel. Here’s how they work for the three most common problem features.
A hole through a side wall stops the mold from opening straight. You have two ways around it:
Drilling adds a step to each part. It fits best when a side action would cost more than that extra step.
A window in a side wall usually calls for a side action. A pass-through shutoff can replace it.
The hook on a snap-fit clip catches on the steel when the mold opens. Two fixes can help:
Most undercuts can be molded with the right mold parts. A few can’t, or cost too much to be worth it. These cases come down to space, because the steel needs room to move.
Undercuts that are hard or impossible to mold include:
When that happens, you still have options:
The earlier you know which route fits, the less it costs to change course.
An undercut is cheap to fix in CAD. Once the steel is cut, the same fix can mean new mold parts, rework, and delays. The best time to ask about undercuts is before your mold is built.
